A common mistake we see from contractors in Allentown is assuming that standard compaction with vibratory rollers is enough to handle the deep, loose granular fills found across the Lehigh Valley. These soils, often from historic industrial activity along the Lehigh River, can settle unevenly years after construction. So instead of relying on surface compaction alone, a proper vibrocompaction design targets deeper strata using a down-hole vibrator to densify the ground from the bottom up. Before mobilizing equipment, the team typically runs a densidad cono arena test at several depths to establish baseline density profiles and confirm where treatment is actually needed.
Vibrocompaction in Allentown's alluvial sands typically achieves relative densities of 75 to 85 percent within a single pass when grid spacing is optimized.
Method and coverage
Allentown sits on a mix of alluvial sands and gravels from the Lehigh River floodplain, with the water table often sitting 10 to 15 feet below grade in the downtown area. This setting is ideal for vibrocompaction because the method works best in saturated, cohesionless soils where pore pressure dissipates quickly during vibration. Designing the grid spacing and probe depth requires correlating blow counts from a previous ensayo SPT with target relative density values, typically 70 to 85 percent per project specs. In our experience, the probe pattern across Allentown sites usually follows a triangular layout with 8- to 12-foot centers, adjusted for the backfill material and the vibration energy delivered by the probe. The key parameters we track include:
Probe penetration rate (0.5 to 2.0 ft/min)
Amplitude and frequency settings (30 to 50 Hz)
Water and air injection rates for flushing
Duration of vibration at each depth increment

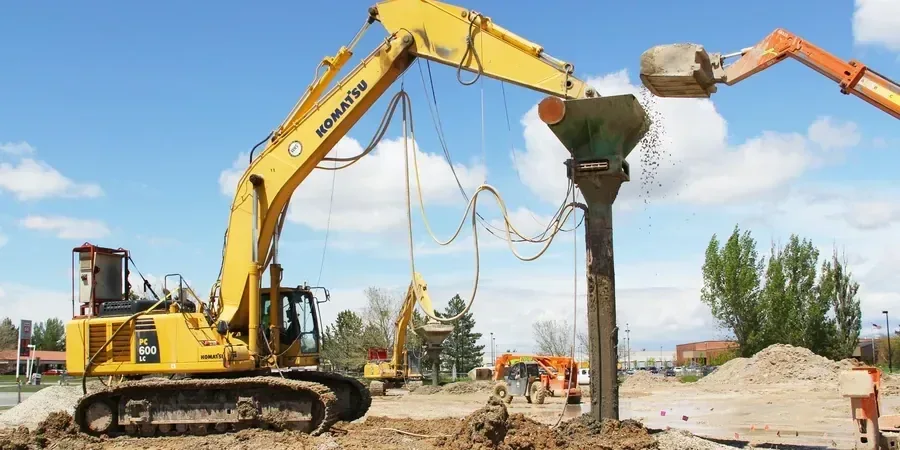

Technical reference image — Allentown
Regional considerations
What we often see in Allentown is a tendency to overlook the influence of buried utilities or old foundations on the vibration field. If a probe hits a buried obstruction, the compaction energy gets redirected, leaving loose zones directly below. That void can later produce differential settlement under a slab or footing. Our recommendation is to pair the vibrocompaction design with a geophysical survey like georradar GPR to map subsurface anomalies before the probe arrives. In the older industrial districts near the river, we have found abandoned coal bins and masonry walls that would have compromised the treatment entirely.
This service targets natural sands and gravels or man-made fills deeper than 15 feet. We design the probe pattern, backfill material (usually clean sand or gravel), and vibration parameters to achieve a target relative density of 75 to 85 percent. Post-treatment verification includes CPT or SPT soundings at midpoints between probe points.
02
Shallow Vibrocompaction for Foundation Support
For spread footings or mat foundations on Allentown sites with less than 15 feet of loose fill, we adapt the grid to a tighter 6- to 8-foot spacing and reduce the probe depth. This approach raises bearing capacity to 4,000 to 6,000 psf and cuts differential settlement to under 0.5 inches. A proof-rolling pass with the vibrator validates the upper zone before concrete placement.
Standards that apply
ASCE 7-22 (minimum design loads for buildings), IBC 2021 (Chapter 18: Soils and Foundations), ASTM D1586-18 (Standard Test Method for SPT), FHWA HI-95-032 (Vibrocompaction Manual)
Quick answers
How much does vibrocompaction design cost in Allentown?
The cost for vibrocompaction design in Allentown typically ranges between $1,670 and $5,340, depending on the site area, depth of treatment, and number of probe points. This includes field testing, parameter analysis, and a final design report with grid layout and verification recommendations.
What soil conditions in Allentown respond best to vibrocompaction?
Loose to medium-dense sands and gravels with less than 15 percent fines are ideal. Allentown’s alluvial deposits along the Lehigh River and the old industrial fills near the Hamilton Street corridor are prime candidates. Clay or silt layers above 20 percent thickness reduce effectiveness and may require alternative methods like deep soil mixing.
How long does a vibrocompaction design study take for a typical Allentown project?
A full vibrocompaction design study typically takes 3 to 5 business days from the site visit. The timeline includes one day for field soundings (SPT or CPT), two days for lab classification and density analysis, and one to two days for writing the design report with grid layout and settlement estimates.
