Many developers in Allentown assume that a simple soil report is enough before cutting into a hillside. That approach often misses critical failure planes in the residual soils and weathered shale that dominate the region. Without a dedicated slope stabilization design, those cuts can fail during the first heavy storm. We combine site-specific data with limit equilibrium modeling to define safe angles and reinforcement needs. Before we model the slope, we recommend a georadar survey to map shallow bedrock and a resistivity profile to locate water seepage paths that trigger instability.
Allentown's weathered shale and glacial till create slope failure surfaces that standard soil reports routinely miss. We map them.
Method and coverage
Allentown grew rapidly during the industrial boom of the late 1800s, with many neighborhoods built directly into the slopes of the Lehigh Valley. Those old fills and cuts now require careful evaluation as redevelopment intensifies. Our slope stabilization design accounts for the unique glacial till and colluvium layers found across the city. We use Bishop and Spencer methods for rotational failure analysis and apply Spencer's method for non-circular surfaces. For steep cuts near existing structures, we model tieback anchors and soil nails. The work is supported by a triaxial test program to obtain drained and undrained strength parameters.

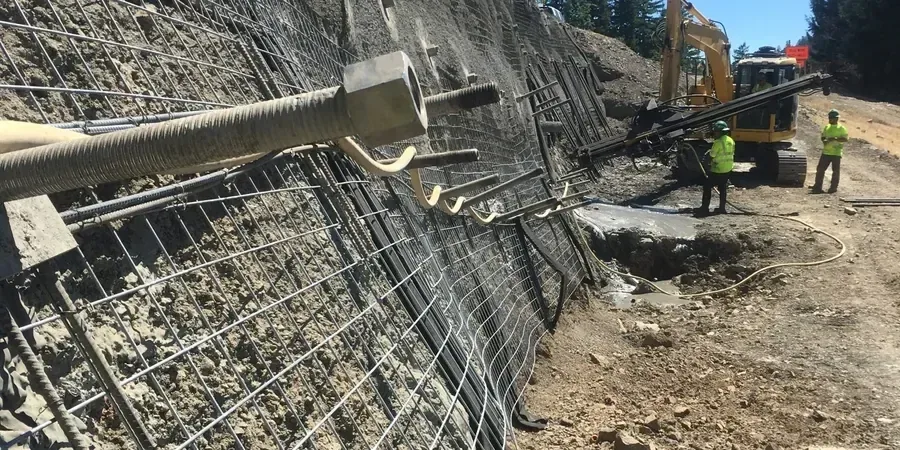

Technical reference image — Allentown
Regional considerations
The Lehigh Valley gets about 44 inches of rain per year, with intense thunderstorms from May to September. That seasonal saturation is the main trigger for slope failures in Allentown. Water percolates through the permeable topsoil until it hits the low-permeability shale bedrock, creating a perched water table that reduces effective stress dramatically. A slope that appears stable in dry August can fail in March. Our design includes subsurface drainage layers and horizontal drains to keep pore pressures low. We also model rapid drawdown scenarios for slopes adjacent to retention basins.
For fills and gentle slopes, we design geogrid-reinforced soil slopes that integrate with the natural topography. We evaluate foundation bearing capacity, select appropriate geosynthetic reinforcement, and verify internal and external stability. This approach is cost-effective for highway embankments and residential subdivisions.
02
Rock Slope and Cut Face Stabilization
In areas where the weathered shale or sandstone is exposed, we design rock bolt patterns, shotcrete facing, and ditch catchment systems. We use kinematic analysis to identify wedge and planar failures. This service is common along Allentown's steep arterial roads and commercial development sites.
Standards that apply
ASCE 7-22 Minimum Design Loads (Seismic Slope Stability), FHWA-NHI-14-007 Soil Nail Walls Reference Manual, ASTM D4767-11 Standard Test Method for Consolidated-Undrained Triaxial Compression, IBC 2021 Chapter 18 Excavation and Grading
Quick answers
What is the difference between a soil report and a slope stabilization design?
A soil report classifies the soil and provides basic strength parameters. A slope stabilization design uses those parameters to model failure surfaces, calculate factors of safety, and specify reinforcement or drainage measures. It is a site-specific engineering analysis, not a general description of ground conditions.
When is a slope stabilization design required in Allentown?
It is required when a cut or fill exceeds 10 feet in height, when the slope angle exceeds 2H:1V, or when there is evidence of past movement. The City of Allentown and Lehigh County also require it for any grading permit near a known landslide-prone area.
How long does the design process take for a typical residential lot?
For a standard residential lot with one or two slopes, the design process takes 2 to 3 weeks. This includes a site visit, soil sampling, laboratory testing, numerical modeling, and preparation of the design report and construction drawings.
What factors of safety do you use for slope stabilization design?
We use a minimum factor of safety of 1.5 for static conditions and 1.1 for seismic loads per ASCE 7. For critical slopes adjacent to existing structures or roads, we increase those values to 1.6 and 1.2 respectively. This aligns with standard geotechnical practice in Pennsylvania.
How much does slope stabilization design cost in Allentown?
The cost ranges between US$1.880 and US$5.770 depending on the number of cross-sections, laboratory testing requirements, and the complexity of the groundwater analysis. A basic single-slope design for a small lot falls at the lower end of that range.
