Allentown grew rapidly during the 20th century as an industrial hub along the Lehigh River. Much of its expansion occurred on alluvial plains and former marshland, where soft clays and silts dominate the subsurface profile. These deposits are notorious for long-term consolidation under new fill or building loads. For projects where traditional surcharge stacking is not feasible, a preloading design without surcharge offers a controlled alternative. It relies on staged fill placement and careful monitoring of pore pressure dissipation. In our experience, combining this method with a detailed consolidationanalysis helps predict settlement accurately before permanent loads are applied.
In Allentown's soft alluvial clays, staged fill with no surcharge can still achieve 90% consolidation within the construction window when pore pressure response is monitored in real time.
Method and coverage
One thing we often see in Allentown is that the Lehigh Valley clay has moderate plasticity but very low permeability. That means primary consolidation can take months, not weeks. A preloading design without surcharge requires precise instrumentation to track settlement rates. We install settlement plates and piezometers at critical depths. The data guides how fast we can place subsequent lifts. Key parameters we monitor include:
Time-rate curves from oedometer tests on undisturbed samples
Pore pressure dissipation to prevent stability failure
Calculated time to 90% consolidation under design load
We also cross-check field settlement against theoretical predictions using Terzaghi's one-dimensional consolidation theory. This approach avoids the need for extra imported fill while still achieving target post-construction settlement limits.

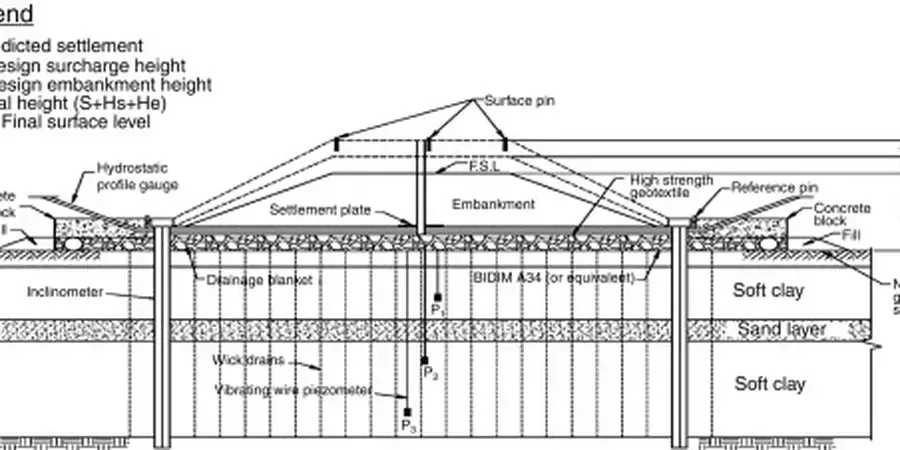

Technical reference image — Allentown
Regional considerations
Allentown sits at about 100 meters above sea level, but the valley floor is underlain by up to 15 meters of soft alluvium. That thick layer of compressible soil makes differential settlement a real concern. If preloading rates are too aggressive, shear failure can occur at the edge of the fill. We've seen cases where pore pressures spiked to 80% of overburden within days. That triggers stability alarms. A preloading design without surcharge must account for these local conditions. The risk is not just total settlement but uneven distortion across foundations. We incorporate stability analyses using Bishop's method modified for staged construction to keep factors of safety above 1.3 throughout the process.
Laboratory oedometer tests on undisturbed thin-wall tube samples from Allentown sites. We run incremental loading stages matching expected stress increments. Results include cv, cc, and preconsolidation pressure. These feed directly into settlement predictions for preloading without surcharge.
02
Field Instrumentation & Monitoring
Installation of vibrating wire piezometers, settlement plates, and inclinometers. We provide weekly reports during the preloading phase. Data is compared against the design curve to adjust fill placement rates in real time. This service is critical for soft clays in the Lehigh Valley floodplain.
How does preloading without surcharge differ from conventional surcharge preloading?
Conventional surcharge uses additional fill above the design load to accelerate consolidation. Without surcharge, you place only the final design fill height and wait longer for settlement to occur. It saves on material import and removal costs but requires a longer time window. It works well when construction schedules allow for 6 to 12 months of preload.
What soils in Allentown are most problematic for preloading without surcharge?
The soft alluvial clays and silts along the Lehigh River and Little Lehigh Creek. These soils have low permeability (k around 10⁻⁷ cm/s) and moderate to high compressibility. They can take 8 months or more to reach 90% consolidation under a 3-meter fill. Organic deposits near creek beds are even slower.
How much does a preloading design study cost in Allentown?
A complete preloading design study including oedometer testing, settlement analysis, and monitoring plan typically ranges between US$760 and US$1,910. The final cost depends on borehole depth, number of undisturbed samples, and monitoring duration. We provide a fixed quote after reviewing site conditions.
What settlement criteria should I specify for a warehouse slab on preloaded ground?
For typical warehouse slabs in Allentown, engineers often specify total settlement under 25 mm and differential settlement of 1:500 or better. Preloading without surcharge can achieve these values if the fill is placed in 0.5-meter lifts with pore pressure monitoring. Differential settlement is the harder target; it requires uniform soil conditions across the footprint.
