Allentown sits in the Lehigh Valley, where the region's freeze-thaw cycles and high water tables create unique challenges for pavement design. The city's clay-rich glacial till and alluvial soils shift volume with moisture changes, demanding precise subgrade characterization. For any roadway project here, road geotechnics must address frost heave potential and drainage early. Without accurate data, pavements crack within seasons. The team combines field testing with lab analysis to deliver designs that hold up through Pennsylvania winters. This includes evaluating swell potential and using geomallas to reinforce weak layers where needed.
Allentown's freeze-thaw cycles demand subgrade CBR values measured after saturation, not at optimum moisture, to avoid premature pavement failure.
Method and coverage
Allentown's geology is dominated by the Lehigh River floodplain deposits and the underlying Martinsburg Formation shale. The water table sits 3 to 8 feet deep in many areas, saturating subgrades. Characterization begins with test pits and soil classification per ASTM D2487. Key parameters include the California Bearing Ratio (CBR), Atterberg limits, and Proctor compaction curves. The lab runs soaked CBR tests to simulate worst-case saturation. For projects near the PPL Center or new subdivisions, the team uses ensayo CBR to set design thickness. Parameters typically measured include:
CBR at 0.1 and 0.2 inch penetration
Maximum dry density and optimum moisture content (ASTM D698)
Liquid limit and plasticity index (ASTM D4318)
Percent passing No. 200 sieve
Free swell and collapse potential

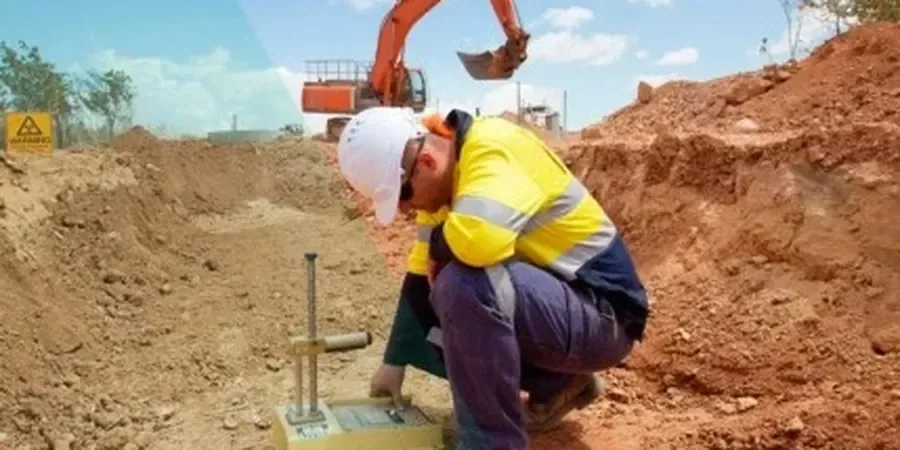

Technical reference image — Allentown
Regional considerations
ASCE 7 and IBC require site-specific geotechnical investigation for any pavement structure in seismic zones. Allentown falls under Seismic Design Category B, with peak ground acceleration of 0.10g. The bigger risk here is not earthquakes but frost action and expansive soils. Clay-rich subgrades in the Cedar Crest Boulevard corridor can heave up to 2 inches annually. Without proper stabilization using lime or cement, pavements develop longitudinal cracking. The lab mitigates this through swell-consolidation tests and CBR swell measurements, ensuring designs meet PennDOT Publication 242 standards.
Soaked and unsoaked CBR tests per ASTM D1883. Results drive flexible pavement thickness using AASHTO 1993 design method. Includes swell measurement.
02
Dynamic Compaction and Soil Stabilization
In-situ deep compaction for loose fills. Lime or cement stabilization for expansive clays. Field density verification via nuclear gauge per ASTM D6938.
03
Pavement Coring and FWD Analysis
Extract cores for thickness and material identification. Falling Weight Deflectometer backcalculation to assess remaining structural capacity of existing pavements.
What CBR value is required for a residential street in Allentown?
PennDOT typically requires a minimum soaked CBR of 3% for subgrade under residential pavements. For collector roads, the minimum rises to 5%. The lab tests at both 0.1 and 0.2 inch penetration to confirm compliance.
How does frost depth affect subgrade design in the Lehigh Valley?
Allentown's frost depth is 36 inches per IBC. Below that line, soils remain above freezing. Pavement sections must either extend below frost depth or use non-frost-susceptible granular fill. The lab identifies frost-susceptible soils by the percent passing the No. 200 sieve and plasticity index.
Is chemical stabilization recommended for Allentown's clay subgrades?
Yes. Lime treatment reduces plasticity and swell potential in the region's high-PI clays. The lab runs Eades and Grim pH tests to determine lime percentage. Cement stabilization works better for low-PI silts common near the Lehigh River.
How much does a full road geotechnics investigation cost in Allentown?
A standard investigation including test pits, CBR, Proctor, and Atterberg limits ranges between US$920 and US$4,330. Final cost depends on the number of borings, access conditions, and whether stabilization tests are required.
