A common mistake we see among contractors in Allentown is assuming a uniform bearing stratum exists across the city. The Lehigh Valley sits on a complex mix of glacial till, weathered limestone, and old alluvial deposits from the Lehigh River. Specifying a driven pile length based on a single boring from a neighboring lot can lead to refusal on a boulder or, worse, plunge into a solution cavity. That is why we always correlate every pile location with a site-specific soil profile. Before we finalize the driven pile design, we run a full SPT program to capture blow counts in each stratum and identify the depth of competent bedrock. This approach prevents costly under-design and keeps the foundation working as the structural engineer intended.
A single unaccounted boulder in Allentown's glacial till can shift pile tip elevation by 3 meters, altering the entire foundation design.
Method and coverage
For driven pile design in Allentown our field team mobilizes a track-mounted pile hammer and a dedicated reaction frame to maintain alignment during driving. We use a diesel hammer rated at 35 kN-m to advance H-piles or precast concrete sections through the upper sand and gravel layers. The load test setup follows ASTM D3966, including a minimum of two sacrificial test piles per site. We embed vibrating-wire strain gauges at three depths to measure load transfer along the shaft. This data feeds directly into the capacity calculation, allowing us to confirm design assumptions against actual soil resistance. We also cross-check the pile drivability with a wave equation analysis before mobilization, which saves time and avoids damage to the pile head in dense glacial till.

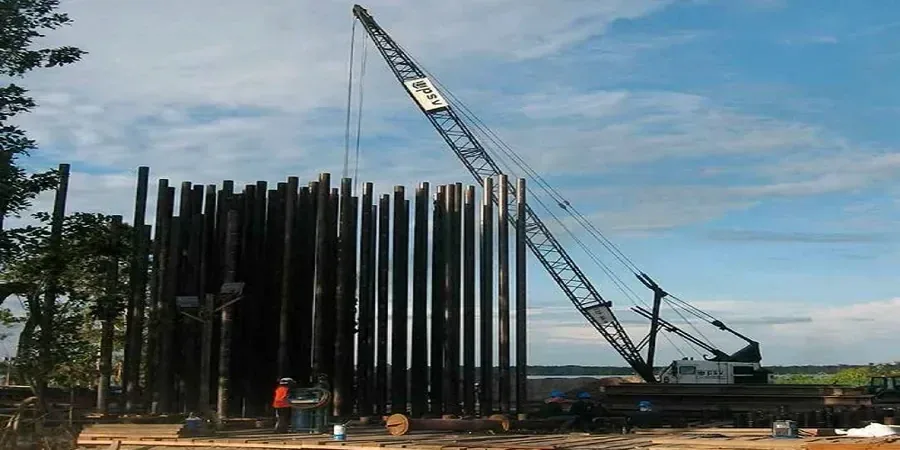

Technical reference image — Allentown
Regional considerations
Comparing Allentown's west side near Cedar Crest Boulevard with the downtown corridor along Hamilton Street reveals stark soil differences. The west side features thick glacial till with cobbles that can cause premature refusal, while downtown fills over solution-prone limestone create potential voids. A driven pile design that works in one district may fail in the other. If a pile tip lands in a cavity without detection, the entire column load transfers to the shaft alone, risking settlement differences of over 25 mm. We mitigate this by pairing the pile layout with a resistivity survey to map buried karst features before driving starts.
We design and supervise static compression tests on sacrificial piles to verify the design capacity. Our technicians install strain gauges and dial gauges to record load-settlement behavior in real time.
02
Drivability Study & Wave Equation Analysis
Using GRLWEAP software we model the hammer-pile-soil system to predict driving stresses, required blow counts, and optimal hammer energy. This reduces the risk of pile damage during installation in Allentown's variable glacial till.
Standards that apply
IBC 2021 Chapter 18 (Soils and Foundations), ASCE 7-22 (Minimum Design Loads), ASTM D3966-18 (Static Pile Load Testing), FHWA GEC 12 (Design and Construction of Driven Pile Foundations)
Quick answers
What does a driven pile design study cost in Allentown?
For a typical commercial building in Allentown the cost ranges between US$1,200 and US$4,190. The final price depends on the number of test piles, depth of boring, and whether you need a wave equation analysis.
How deep do driven piles typically go in Allentown's soil?
Depths vary widely. In areas where glacial till overlies limestone bedrock, piles often reach competent material between 8 and 15 m. Downtown sites with thicker fill may require 18 m or more to bypass loose debris and reach dense strata.
What is the difference between end-bearing and friction piles in local conditions?
End-bearing piles transfer load directly to bedrock or a dense layer, which is common in west Allentown where limestone is shallow. Friction piles rely on shaft resistance along the pile surface; this works better in the deep, uniform silty sands found along the Lehigh River corridor.
Do I need a wave equation analysis for every pile project?
We recommend it for any project with more than 10 piles. The analysis identifies potential hammer issues before mobilization and confirms that the chosen pile section can withstand driving stresses without cracking or buckling in Allentown's boulder-rich till.
