In Allentown, the Lehigh River valley deposits a mix of sand, gravel, and occasional clay layers. We see this firsthand during every SPT boring. The standard penetration test gives us N-values that directly correlate with soil density and strength. For projects near the South Mountain ridge, we often pair the SPT with a resistivity survey to map bedrock depth before finalizing foundation designs. This combination avoids surprises when drilling into the weathered shale common in the western neighborhoods.
The standard penetration test remains the most widely used in-situ method for determining soil resistance across Allentown's varied glacial and alluvial deposits.
Method and coverage
The soil profile in downtown Allentown differs from the suburban tracts near Dorney Park. Older fill and urban debris require careful SPT sampling every 1.5 meters per ASTM D1586-18. Our crew logs blow counts per 6-inch interval, recording the 12-inch driving resistance after a 6-inch seating drive. We also check for groundwater during the test, as the perched water table in some areas of Allentown can skew N-values. When we encounter silty sands, we run a CPT alongside the SPT to capture continuous cone resistance. This dual approach gives a fuller picture of bearing capacity for multi-story buildings.

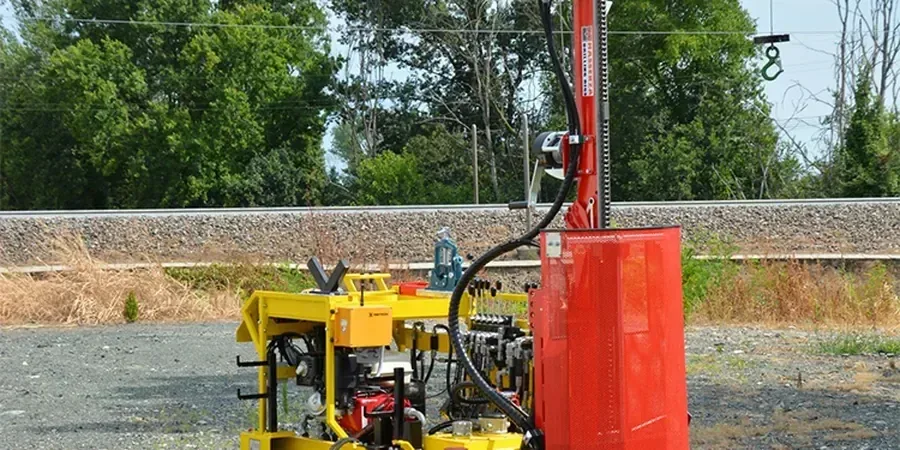

Technical reference image — Allentown
Regional considerations
A five-story apartment near the Lehigh Canal encountered unexpected loose sand at 8 meters depth. The SPT revealed N-values dropping from 18 to 6 blows per foot. Had the geotechnical engineer not caught this low-density zone, the shallow foundation would have settled unevenly. The team redesigned with deep piles, but the delay cost the contractor two months. Regular SPT intervals at 1-meter spacing would have flagged the anomaly earlier. In Allentown, missing a soft layer in the alluvium can lead to differential settlement exceeding 1 inch.

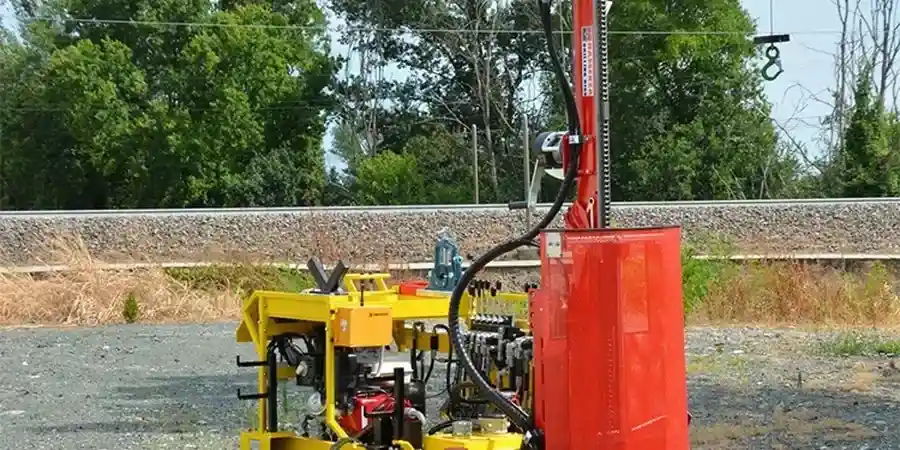

Mobilization of a CME 45 or similar track-mounted rig. Continuous SPT sampling in accordance with ASTM D1586. We handle soil classification on site and transport samples for lab testing.
02
Data Interpretation and Report
Corrected N-values with energy and overburden adjustments. Bearing capacity analysis per Terzaghi and Meyerhoff methods. We include a clear table of blow counts versus depth for each boring location in Allentown.
What is the SPT and how is it performed in Allentown?
The standard penetration test (SPT) is a dynamic penetration test performed in boreholes. A 140 lb hammer drops 30 inches, driving a split-barrel sampler into the soil. The blow count per foot, known as the N-value, is recorded. In Allentown, we follow ASTM D1586 and typically sample every 1.5 meters in urban fills and every 1.0 meter in sensitive alluvial deposits.
How much does an SPT test cost in Allentown?
The typical cost for an SPT boring in Allentown ranges from US$540 to US$810 per test point, depending on depth, access, and number of samples. This includes drilling, sampling, and field logging. Final lab testing and report are usually quoted separately. Contact us for a site-specific estimate.
What N-value indicates good bearing capacity in Allentown?
For most Allentown soils, N-values above 30 blows/ft indicate dense sand or gravel with good bearing capacity. Values between 10 and 25 are common in the Lehigh River floodplain and suggest medium-dense conditions requiring moderate foundation design. N-values below 8 in sandy layers usually call for deep foundations or Improvement.
Can SPT detect groundwater issues in Allentown?
Yes. During the SPT, we note the depth at which water enters the borehole. In Allentown's valley areas, the water table can be as shallow as 3 to 6 feet after heavy rain. This information is critical for basement design and dewatering planning. The SPT is not a substitute for a dedicated piezometer, but it provides a reliable first indication.
Location and service area
We serve projects across Allentown and its metropolitan area.
