Allentown sits on a complex mix of glacial till, alluvial deposits, and man-made fill left by the city's industrial past, particularly near the Lehigh River corridor. These loose, water-bearing layers often lack the bearing capacity needed for modern structures. That's where a purpose-built jet grouting design becomes essential. By eroding and mixing cement grout with the in-situ soil under high pressure, we create columns or panels of improved ground that behave more like rock than soil. Before mobilizing equipment, we correlate our design parameters with a resistivity survey to map subsurface variability across the site — a step that saves both time and material.
Jet grouting transforms Allentown's loose alluvial soils into engineered ground with controlled strength and stiffness, reducing foundation costs and construction risk.
Method and coverage
A common mistake contractors make in Allentown is assuming a single grouting recipe works across the entire Lehigh Valley footprint. The city's geology shifts from dense glacial till on the hillsides to soft, saturated silts in the floodplain — each requiring different water-cement ratios, nozzle velocities, and column spacing. Our jet grouting design process starts with a detailed stratigraphic model built from SPT borings and lab tests. We then run numerical simulations to optimize the treatment pattern, accounting for the local groundwater gradients that can wash out unset grout. This prevents the costly rework that occurs when columns are undersized or disconnected.

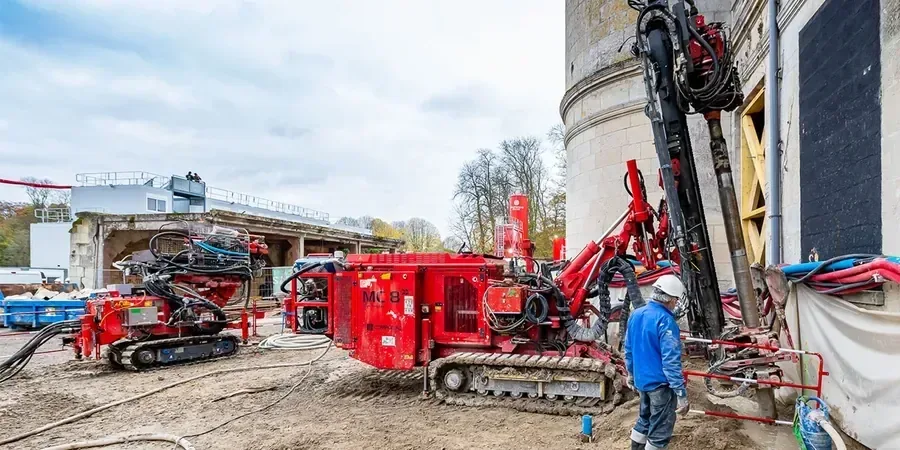

Technical reference image — Allentown
Regional considerations
Allentown's population sits at around 125,000, and much of its recent development fills vacant industrial lots along the Lehigh River — sites underlain by old foundry sand, coal ash, and undocumented fills. Without a tailored jet grouting design, these heterogeneous deposits settle unevenly under load, cracking slabs and tilting foundations within the first year. The risk is compounded by a shallow water table that fluctuates with seasonal rains, potentially softening already weak ground. Our design explicitly models these conditions, specifying treatment zones deep enough to bypass the fill and key into competent glacial till or bedrock.
We drill boreholes across the Allentown site to identify fill thickness, water table depth, and soil variability. Grain size distribution, Atterberg limits, and undrained shear strength are measured to define design parameters for each treatment zone.
02
Grout Mix Design & Numerical Optimization
Using the lab data, we formulate a water-cement-bentonite mix that achieves the target strength while remaining pumpable. We then run 2D/3D finite element models to determine column spacing, diameter, and overlap that meet settlement and stability criteria.
03
Post-Treatment Quality Control & Verification
After installation, we extract continuous core samples from the treated columns and perform unconfined compression tests. Pressuremeter tests in the improved mass confirm the modulus and permeability, ensuring the design intent is met before foundation work begins.
Standards that apply
ASTM D1586-18 (Standard Penetration Test for site characterization), ASCE/SEI 7-22 (Minimum Design Loads for structure-foundation interaction), IBC 2021 Chapter 18 (Soils and Foundations for deep Improvement), FHWA-HRT-17-004 (Jet Grouting Guidelines for transportation projects)
Quick answers
What soil conditions in Allentown typically require jet grouting design?
Loose granular fills, soft alluvial silts, and zones with high groundwater flow — common along the Lehigh River corridor and former industrial sites — often lack the bearing capacity for shallow foundations. Jet grouting creates engineered columns that bypass or improve these weak layers.
How does IBC 2021 affect jet grouting design parameters?
IBC 2021 Chapter 18 requires deep Improvement to be designed by a registered professional engineer using site-specific geotechnical data. Our designs comply by incorporating SPT N-values, water table depths, and settlement limits into the grouting pattern, which is then verified through post-treatment coring.
How much does a jet grouting design study cost in Allentown?
For a typical commercial lot, the full design package — including boreholes, lab testing, numerical modeling, and final report — ranges between US$1,820 and US$6,240. The final fee depends on site size, number of treatment zones, and required testing scope.
Can jet grouting design be applied to existing structures in Allentown?
Yes. Jet grouting is frequently used to underpin existing foundations in older Allentown buildings where new loads are added or settlement is occurring. The design must account for access restrictions, underpinning sequencing, and vibration limits to protect the existing structure.
Location and service area
We serve projects across Allentown and its metropolitan area.
