Allentown grew rapidly during the industrial boom of the late 19th century, when factories and warehouses rose along the Lehigh River without much geotechnical forethought. Today, infill development and brownfield reclamation projects across the city face variable alluvial deposits, glacial till, and man-made fill layers that can settle unevenly under load. In our experience, a proper settlement analysis is the difference between a building that performs as designed and one that cracks before occupancy. We combine field investigation with laboratory consolidation testing, and when the soil profile includes soft clay or loose sands, we often recommend a precarga strategy to accelerate pre-construction settlement and reduce post-construction movement.
The difference between a building that performs as designed and one that cracks before occupancy often comes down to how well we model settlement in variable alluvial soils.
Method and coverage
A recent mixed-use project near Seventh Street required us to evaluate 18 feet of soft silty clay overlying dense glacial outwash. The structural loads were moderate, but the clay layer would undergo primary consolidation for months under full dead load. We ran incremental loading oedometer tests to determine the compression index (Cc) and coefficient of consolidation (Cv), then modeled time-rate settlement using Terzaghi's 1D theory. The analysis showed total settlement of 2.3 inches, with 80 percent occurring within the first year. To keep differential movement under 1/2 inch across the slab, we specified surcharge fill combined with wick drains. This kind of scenario is routine in Allentown, where buried stream channels and variable fill are the norm rather than the exception.

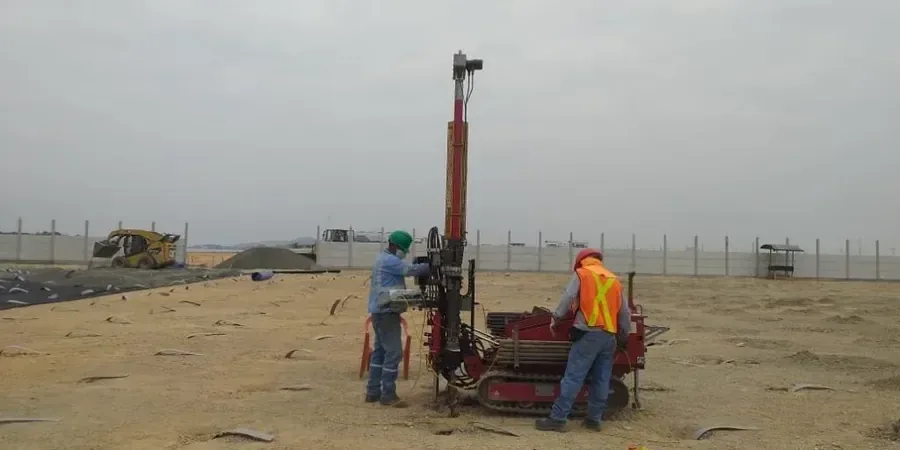

Technical reference image — Allentown
Regional considerations
ASCE 7-22 and IBC 2021 require that foundation settlement be limited to values that do not impair the serviceability or structural integrity of the building. In Allentown, where much of the downtown rests on variable alluvial deposits and undocumented fill from the industrial era, the risk of differential settlement is amplified. We have seen cases where a 6-inch differential across a 40-foot slab caused stair-step cracking in load-bearing masonry and misaligned elevator shafts. Our standard practice includes a site-specific settlement analysis that accounts for layer geometry, stress distribution using Boussinesq theory, and consolidation parameters from lab tests on undisturbed samples. We also evaluate secondary compression (creep) in organic-rich layers, which can continue for decades if not properly identified.
Laboratory oedometer tests on undisturbed Shelby tube samples to determine compression and recompression indices, preconsolidation pressure, and coefficient of consolidation. Results feed directly into time-rate settlement models for shallow foundations and embankments.
02
Field Monitoring & Verification
Installation of settlement plates, inclinometers, and piezometers to track actual movement during and after construction. We compare field data against predictions to validate design assumptions and adjust fill sequences if needed.
Standards that apply
ASTM D2435 (Standard Test Methods for One-Dimensional Consolidation Properties of Soils), ASTM D4546 (One-Dimensional Swell or Settlement of Cohesive Soils), IBC 2021 Chapter 18 (Soils and Foundations), ASCE 7-22 Section 11.8 (Design for Differential Settlement)
Quick answers
How much does a settlement analysis typically cost in Allentown?
For a typical commercial or residential project, the cost ranges between US$560 and US$1,560 depending on the number of consolidation tests required and the complexity of the soil profile. This includes field sampling, lab testing, and a written report with settlement calculations.
What is the difference between total settlement and differential settlement?
Total settlement is the overall vertical movement of a foundation relative to its original position. Differential settlement is the variation in movement between two points on the same foundation or structure. In Allentown's variable alluvial soils, differential settlement is the more critical parameter because it induces structural stresses that cause cracking and misalignment.
How long does it take for clay layers in Allentown to fully consolidate?
It depends on layer thickness and drainage conditions. A 10-foot clay layer with single drainage may take 12 to 18 months to reach 90 percent primary consolidation. Thicker layers or those with lower permeability can take several years. We use consolidation tests to estimate the time and recommend surcharge or wick drains to accelerate the process.
Do I need a settlement analysis for a small residential addition in Allentown?
Yes, especially if the addition is on shallow foundations over soft clay or fill. Even a small load can trigger measurable settlement in compressible soils. We routinely perform simplified analyses for residential projects to confirm that differential movement stays within acceptable limits per IBC criteria.
