I drove through the Lehigh Valley not long ago and saw a new distribution center going up near Route 22. The contractor had already poured a thick concrete slab for the truck apron, but without proper rigid pavement design, that slab could crack within two years under heavy axle loads. In Allentown, where freeze-thaw cycles hit hard and the underlying soils vary from glacial till to old alluvial deposits, a one-size-fits-all concrete section won't work. Before specifying thickness, our team runs a plate load test right on the subgrade to measure the modulus of subgrade reaction (k-value). That k-value drives every design decision, from joint spacing to concrete flexural strength.
K-value from field plate load tests directly drives concrete thickness, joint spacing, and dowel bar size for Allentown rigid pavements.
Method and coverage
We follow the AASHTO Guide for Design of Pavement Structures (1993, with supplements) and the PCA method for thickness design, both widely accepted in Pennsylvania. For Allentown projects, the critical parameter is the effective modulus of subgrade reaction (k), which we determine from field plate bearing tests and resilient modulus correlations. Our lab also performs flexural strength tests (ASTM C78) on concrete cylinders to confirm the modulus of rupture. This data feeds directly into the design of joint spacing, dowel bar diameter, and tie bar layout. When the subgrade is weak, we often recommend a cement-treated base layer to improve the k-value before placing the concrete slab. The combination of field testing and lab verification gives owners confidence that the pavement will perform for the intended 20-30 year service life. We also incorporate traffic load spectra from the project's specific axle counts rather than relying on generic ESAL assumptions.

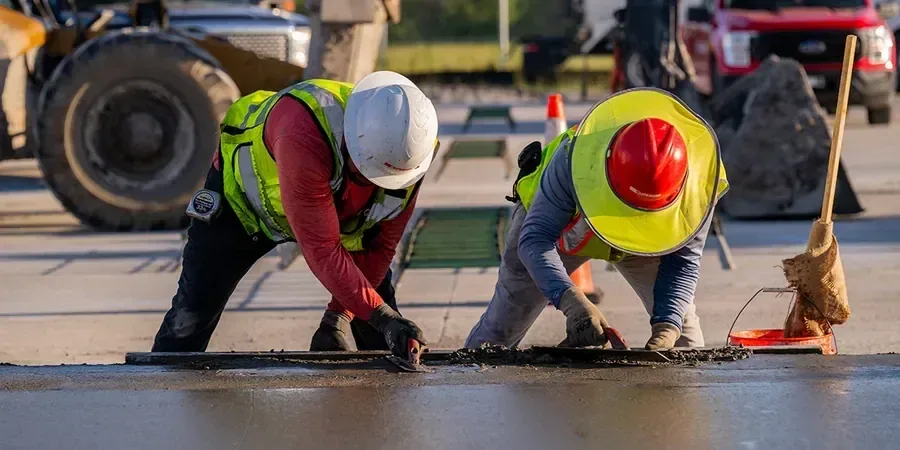

Technical reference image — Allentown
Regional considerations
The east side of Allentown sits on older glacial till that drains well and provides good support, but the west side near the Lehigh River has soft alluvial silts and clays with low bearing capacity. If you design a rigid pavement for the till conditions and pour it on the alluvial side, the slab will pump water, fault at joints, and eventually crack under fatigue. The difference in k-value between these two zones can be a factor of three or more. That's why we always run site-specific plate load tests and subgrade soil classification before committing to a cross-section. A single test per project is not enough — we recommend at least one per 500 feet of roadway or per distinct soil unit identified in the geotechnical report.
Optimized flexural strength and workability for local ready-mix sources in the Lehigh Valley.
03
Joint and dowel layout
Detailed spacing, tie bar patterns, and dowel bar sizing based on AASHTO and PCA methods.
04
Construction quality control
On-site testing of concrete cylinders, subgrade compaction, and joint sawing timing.
Standards that apply
AASHTO Guide for Design of Pavement Structures (1993 + supplements), ASTM C78 (Flexural Strength of Concrete), ASTM D1196 (Plate Load Test), PCA Thickness Design Method
Quick answers
What k-value is typical for Allentown subgrades?
For glacial till on the east side, k-values range from 150 to 300 pci. On the west side near the Lehigh River, soft silts and clays yield k-values between 50 and 100 pci. Field plate load testing is essential to confirm the actual value.
How thick should a rigid pavement be for a heavy truck apron in Allentown?
For frequent 80,000 lb tractor-trailer loads, we typically design 9 to 11 inches of concrete with doweled joints. The exact thickness depends on the measured k-value and the concrete's flexural strength at 28 days.
Do I need dowel bars for rigid pavement in Allentown?
Yes, for any pavement expected to carry truck traffic. Dowel bars transfer load across joints and prevent faulting. In Allentown's freeze-thaw climate, dowels also reduce edge spalling caused by water freezing in unsealed joints.
How much does rigid pavement design cost for a typical project?
A full design package including field testing, lab work, and stamped drawings ranges from US$1,660 to US$5,690, depending on project size and number of test locations.
